SRS流媒体服务器拉流消息处理

本文分享从SRS流媒体服务器拉流消息处理流程。

从SRS流媒体服务器拉流消息处理概述

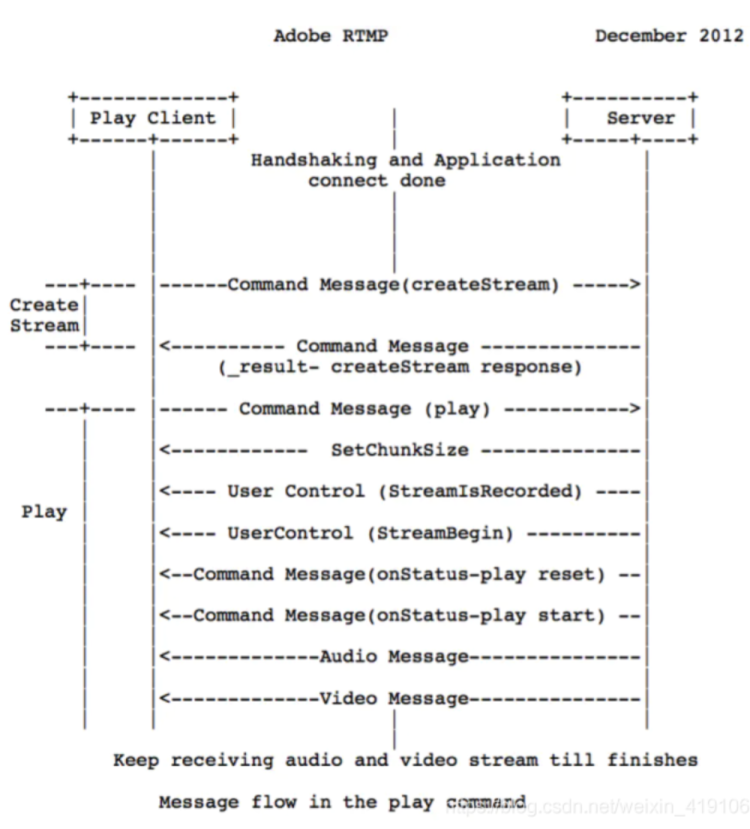

1. 整体播放流程：

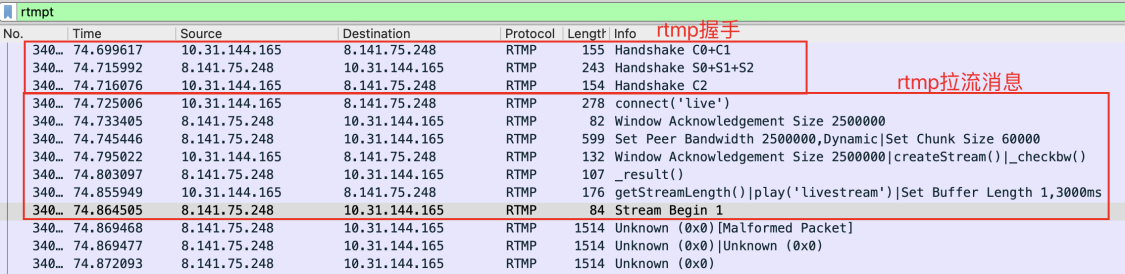

2. 从srs流媒体服务器拉RTMP流wiresharek抓包如下：

RTMP拉流消息前半部分（_result消息前）都已分析过，见：RTMP推流到SRS流媒体服务器消息处理。

重点分析从_result开始的消息。

_result

拉流消息中的_result消息回复的是客户端发送过来createStream消息，具体解析见第3小节。

代码：

1. 解析createStream：SrsProtocol::do_decode_message
		} else if (command == RTMP_AMF0_COMMAND_CREATE_STREAM) {
            *ppacket = packet = new SrsCreateStreamPacket(); //第五个接收到的message为"createStream"消息
            return packet->decode(stream);
        }

2. 反馈createStream消息：SrsRtmpServer::identify_client
        if (dynamic_cast<SrsCreateStreamPacket*>(pkt)) {
            return identify_create_stream_client(dynamic_cast<SrsCreateStreamPacket*>(pkt), stream_id, 3, type, stream_name, duration);
        }

拉流客户端发送getStreamLength、play和set Buffer Length消息

拉流客户端接收到SRS服务器的_result消息后，会连续发三个消息：getStreamLength、play和set Buffer Length消息给SRS服务器。

getStreamLength消息

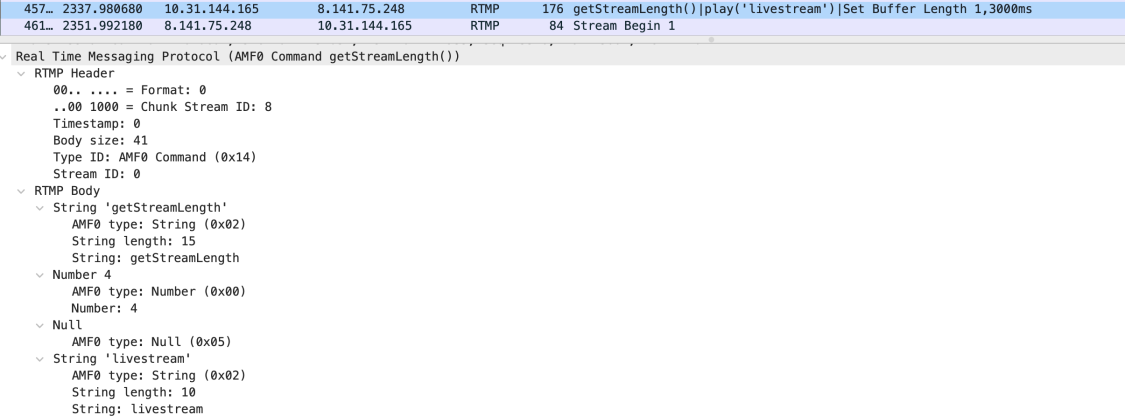

wiresharek截图：

拉流客户端生成’getStreamLength’调用并将其发送到服务器。如果服务器知道所选流的持续时间，它将以秒为单位进行应答。

FFmpeg对应代码：

/**
 * Generate 'getStreamLength' call and send it to the server. If the server
 * knows the duration of the selected stream, it will reply with the duration
 * in seconds.
 */
static int gen_get_stream_length(URLContext *s, RTMPContext *rt)
{
    RTMPPacket pkt;
    uint8_t *p;
    int ret;

    if ((ret = ff_rtmp_packet_create(&pkt, RTMP_SOURCE_CHANNEL, RTMP_PT_INVOKE,
                                     0, 31 + strlen(rt->playpath))) < 0)
        return ret;

    p = pkt.data;
    ff_amf_write_string(&p, "getStreamLength");
    ff_amf_write_number(&p, ++rt->nb_invokes);
    ff_amf_write_null(&p);
    ff_amf_write_string(&p, rt->playpath);

    return rtmp_send_packet(rt, &pkt, 1);
}

play消息

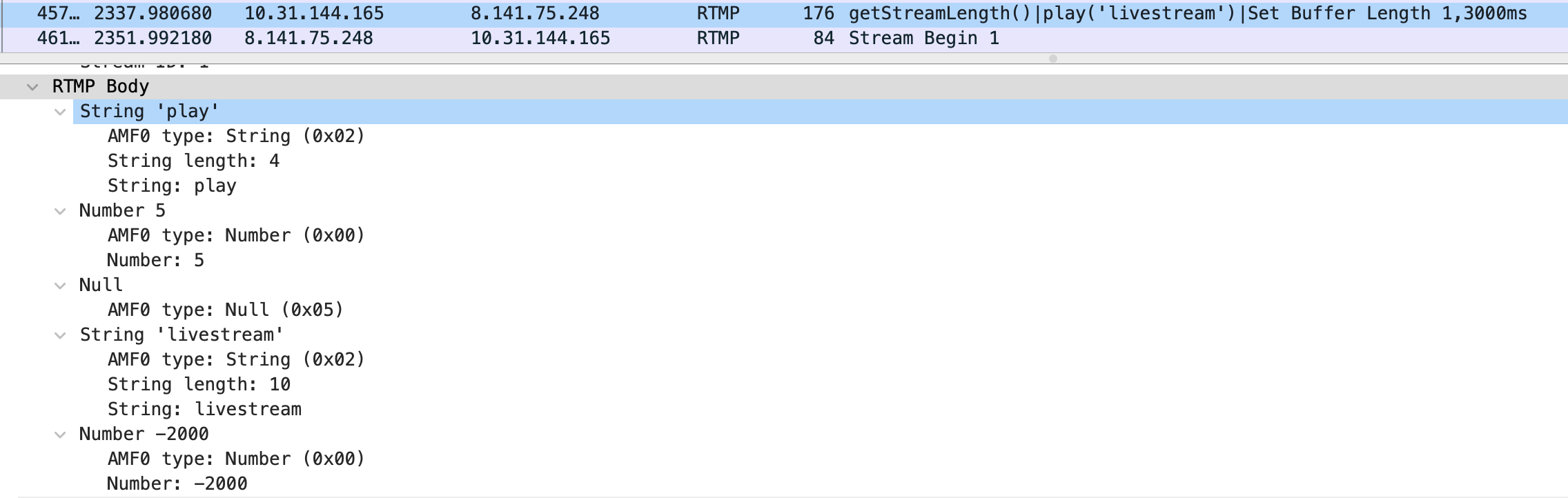

wiresharek截图：

由客户端向服务器发起请求从服务器端接受数据（如果传输的信息是视频的话就是请求开始播流），可以多次调用，这样本地就会形成一组数据流的接收者。注意其中有一个reset字段，表示是覆盖之前的播流（设为true）还是重新开始一路播放（设为false）。

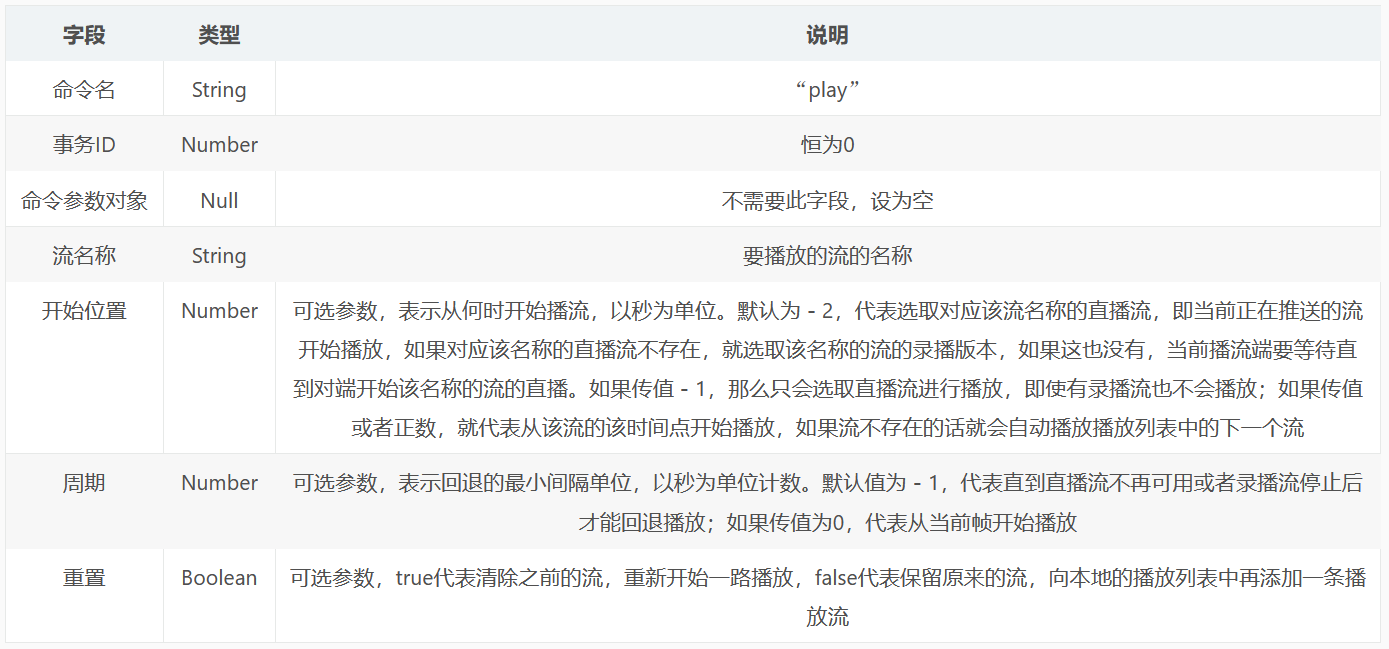

play命令的结构如下：

FFmpeg对应代码：

/**
 * Generate 'play' call and send it to the server, then ping the server
 * to start actual playing.
 */
static int gen_play(URLContext *s, RTMPContext *rt)
{
    RTMPPacket pkt;
    uint8_t *p;
    int ret;

    av_log(s, AV_LOG_DEBUG, "Sending play command for '%s'\n", rt->playpath);

    if ((ret = ff_rtmp_packet_create(&pkt, RTMP_SOURCE_CHANNEL, RTMP_PT_INVOKE,
                                     0, 29 + strlen(rt->playpath))) < 0)
        return ret;

    pkt.extra = rt->stream_id;

    p = pkt.data;
    ff_amf_write_string(&p, "play");
    ff_amf_write_number(&p, ++rt->nb_invokes);
    ff_amf_write_null(&p);
    ff_amf_write_string(&p, rt->playpath);
    ff_amf_write_number(&p, rt->live * 1000);

    return rtmp_send_packet(rt, &pkt, 1);
}

set Buffer Length消息

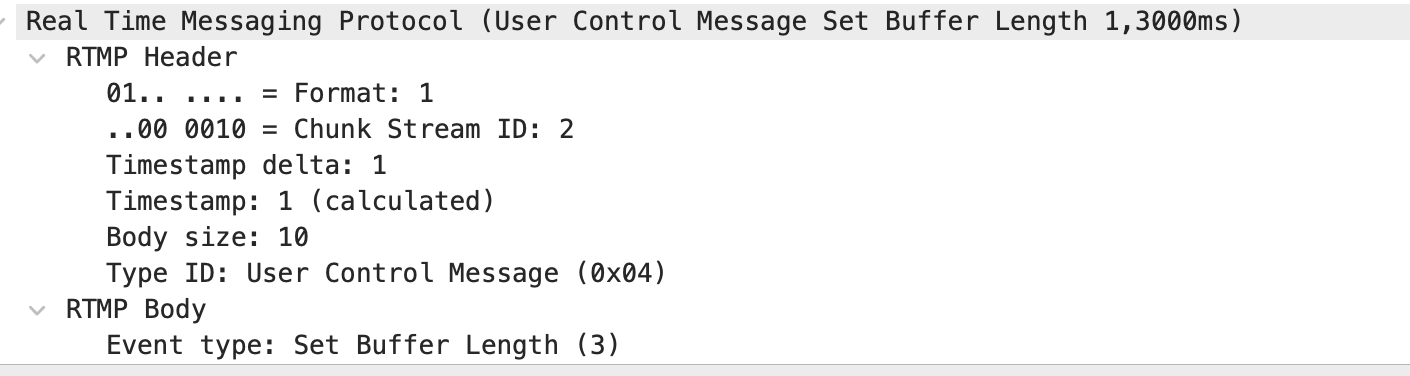

wiresharek截图：

生成客户端缓冲区时间并将其发送到服务器。

/**
 * Generate client buffer time and send it to the server.
 */
static int gen_buffer_time(URLContext *s, RTMPContext *rt)
{
    RTMPPacket pkt;
    uint8_t *p;
    int ret;

    if ((ret = ff_rtmp_packet_create(&pkt, RTMP_NETWORK_CHANNEL, RTMP_PT_USER_CONTROL,
                                     1, 10)) < 0)
        return ret;

    p = pkt.data;
    bytestream_put_be16(&p, 3); // SetBuffer Length
    bytestream_put_be32(&p, rt->stream_id);
    bytestream_put_be32(&p, rt->client_buffer_time);

    return rtmp_send_packet(rt, &pkt, 0);
}

SRS服务器发送Stream Begin、onStatus(NetStream.Play.Reset)和onStatus(NetStream.Play.Start)等消息给拉流客户端

对应SRS代码在SrsRtmpServer::start_play：

srs_error_t SrsRtmpServer::start_play(int stream_id)
{
    srs_error_t err = srs_success;

    // StreamBegin
    if (true) {
        SrsUserControlPacket* pkt = new SrsUserControlPacket();
        pkt->event_type = SrcPCUCStreamBegin;
        pkt->event_data = stream_id;
        if ((err = protocol->send_and_free_packet(pkt, 0)) != srs_success) {
            return srs_error_wrap(err, "send StreamBegin");
        }
    }

    // onStatus(NetStream.Play.Reset)
    if (true) {
        SrsOnStatusCallPacket* pkt = new SrsOnStatusCallPacket();

        pkt->data->set(StatusLevel, SrsAmf0Any::str(StatusLevelStatus));
        pkt->data->set(StatusCode, SrsAmf0Any::str(StatusCodeStreamReset));
        pkt->data->set(StatusDescription, SrsAmf0Any::str("Playing and resetting stream."));
        pkt->data->set(StatusDetails, SrsAmf0Any::str("stream"));
        pkt->data->set(StatusClientId, SrsAmf0Any::str(RTMP_SIG_CLIENT_ID));

        if ((err = protocol->send_and_free_packet(pkt, stream_id)) != srs_success) {
            return srs_error_wrap(err, "send NetStream.Play.Reset");
        }
    }

    // onStatus(NetStream.Play.Start)
    if (true) {
        SrsOnStatusCallPacket* pkt = new SrsOnStatusCallPacket();

        pkt->data->set(StatusLevel, SrsAmf0Any::str(StatusLevelStatus));
        pkt->data->set(StatusCode, SrsAmf0Any::str(StatusCodeStreamStart));
        pkt->data->set(StatusDescription, SrsAmf0Any::str("Started playing stream."));
        pkt->data->set(StatusDetails, SrsAmf0Any::str("stream"));
        pkt->data->set(StatusClientId, SrsAmf0Any::str(RTMP_SIG_CLIENT_ID));

        if ((err = protocol->send_and_free_packet(pkt, stream_id)) != srs_success) {
            return srs_error_wrap(err, "send NetStream.Play.Start");
        }
    }

    // |RtmpSampleAccess(false, false)
    if (true) {
        SrsSampleAccessPacket* pkt = new SrsSampleAccessPacket();

        // allow audio/video sample.
        // @see: https://github.com/ossrs/srs/issues/49
        pkt->audio_sample_access = true;
        pkt->video_sample_access = true;

        if ((err = protocol->send_and_free_packet(pkt, stream_id)) != srs_success) {
            return srs_error_wrap(err, "send |RtmpSampleAccess true");
        }
    }

    // onStatus(NetStream.Data.Start)
    if (true) {
        SrsOnStatusDataPacket* pkt = new SrsOnStatusDataPacket();
        pkt->data->set(StatusCode, SrsAmf0Any::str(StatusCodeDataStart));
        if ((err = protocol->send_and_free_packet(pkt, stream_id)) != srs_success) {
            return srs_error_wrap(err, "send NetStream.Data.Start");
        }
    }

    return err;
}
